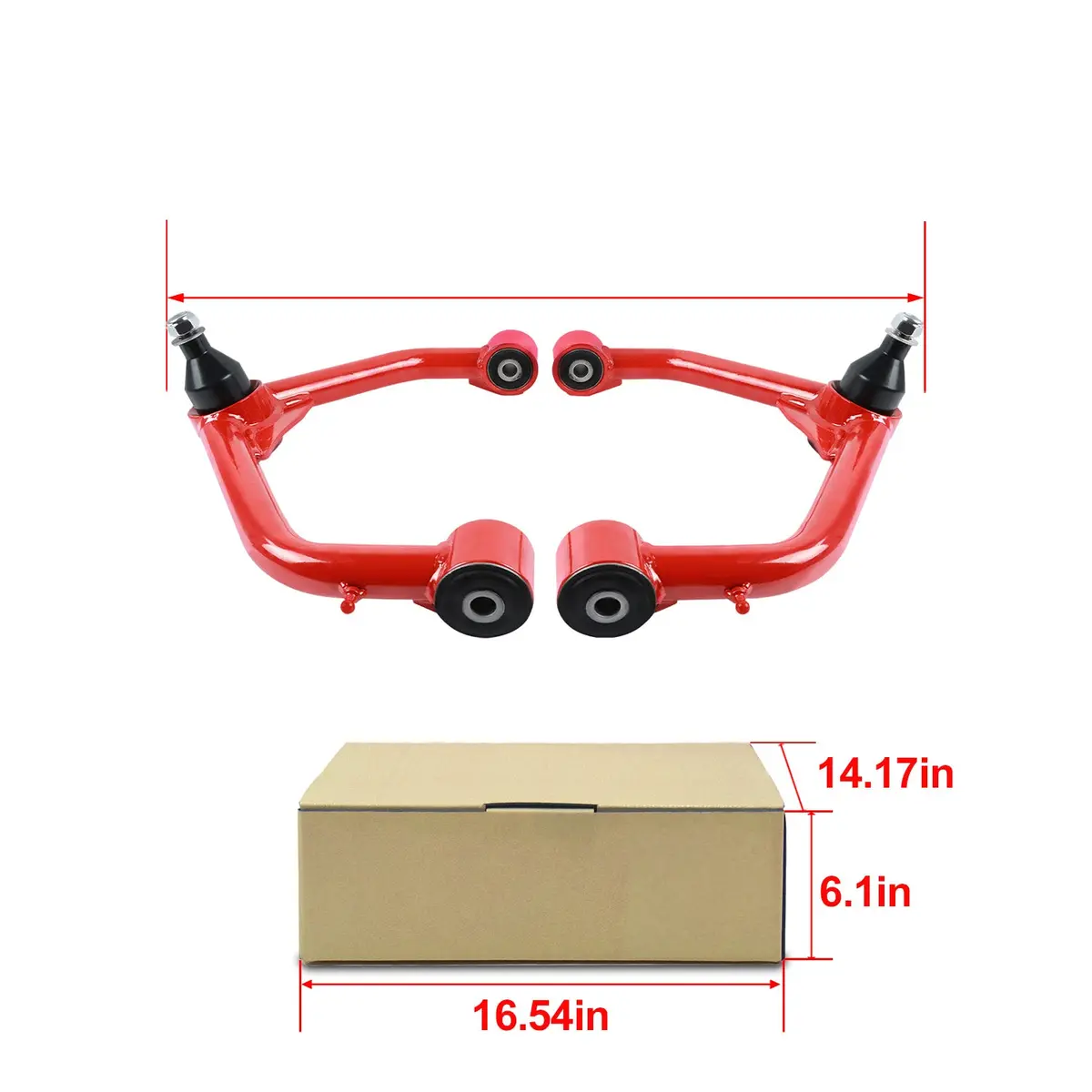

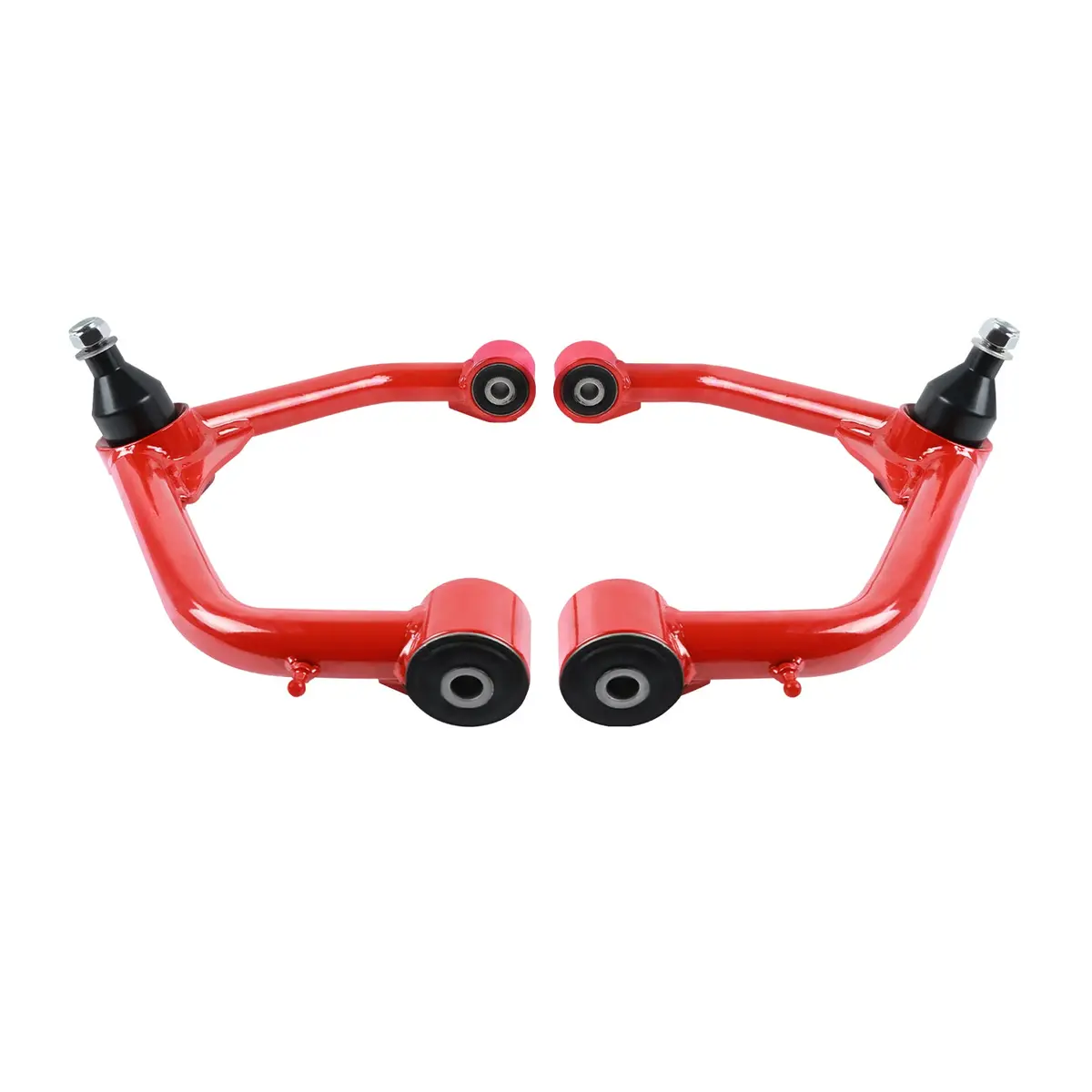

Heavy-Duty Upper Control Arm – Dodge Ram 1500 4×4 (2006–2022)

Description

Safe Installation

Regardless of the type of suspension, the front upper control arm plays a key role in maintaining proper wheel alignment, controlling wheel, and tire movement, and absorbing shock and vibration from the road. Our front upper control arms with ball joints simply connect to the shock springs and steering knuckles. When installing or replacing the upper control arms, it is important to make sure that all components are properly aligned and torqued to specification. This will help prevent premature wear or damage to the suspension system and ensure a safe and consistent driving experience.

High Quality

The front upper control arms consist of 45 gauge steel with 36mm pipe outer diameter and 4mm wall thickness to feature a higher strength and resistance to deformation compared to ordinary A3 steel. The upper control arm dodge ram 1500 utilizes rubber bushings to reduce road noise and vibration, with you enjoying a smooth and controlled ride during turns and bumps. While it uses PU bushings to provide more torque for high-intensity driving experience. In addition, it uses the TIG welding (tungsten inert gas shielded welding) process to be welded with less deformations, less cracking tendency, and beautiful weld seam formation.

Notice

1. Proper installation procedures must be followed to ensure correct installation of the upper control arms and normal operation of the vehicle suspension system. If you are not confident in performing this work, it is best to seek the assistance of a qualified mechanic.
2. During installation, the spring or the tire may be touched. If it touches the tire, it needs to add the flange. However, there are various cases when touching the spring, so you can always contact us if you have questions.
3. The upper control arms must work in conjunction with the lift kit to add 2-4 inches of height to the suspension system, providing more clearance for larger tires and enhancing the vehicle’s off-road capability and appearance.

Failure Symptoms

• Poor Steering Control: A worn or damaged upper control arm can cause the vehicle to understeer or oversteer when driving, especially at higher speeds or when making turns.
• Wobbly Steering Wheel: A wobbly or loose steering wheel is an obvious sign of wear and tear on the chassis system.
• Strange Noises: If you always hear strange noises such as squeaking and creaking (rubber rubbing), clicking and clacking (metal hitting), the control arm body, bushing or ball joint may be damaged.
• Uneven Tire Wear: When the upper control arm ford f150 is worn or damaged, it can cause the tires to wear unevenly or develop unusual wear patterns, such as cupping or scalloping.
• Reduced Responsiveness: When the 2005 ford f150 upper control arm is worn or damaged, it can cause the steering to feel less responsive or more difficult to turn, especially when making sharp turns.

How to Install

1. Raise the vehicle using a jack and support it on jack stands. Make sure the vehicle is securely supported before you start work.
2. Remove the wheel and tire assembly from the side where you want to install the new upper control arm.
3. Locate the upper control arm mounting bolts and remove them using a socket and ratchet or wrench.
4. Carefully remove the old upper control arm from the vehicle, taking note of its orientation and position.
5. Install the new upper control arm in the same position as the old one, making sure it aligns with the mounting points on the vehicle’s frame and the wheel hub assembly.
6. Hand-tighten the mounting bolts and then torque them to the specifications using a torque wrench.
7. Reinstall the wheel and tire assembly and lower the vehicle to the ground.
8. Repeat the same process on the other side if needed.
9. Check your work and perform an alignment. (If you want more information, you can refer to the Ultimate Guide To Upper Control Arm Replacement.)
