Idle Air Control Valve (IACV) Connector A

Description

Idle Air Control Valve (IACV) Plug A

Alternative Part Names: IACV Control Valve Plug 2001-2005; Idle Air Control Valve Plug; IAC valve plug; Idle Air Control Valve (IACV) for 2.0 WRX Subaru

Associated Subaru Part Numbers: 22650AA181; 22650AA182

Wiring Diagram ID: E7

Looking for the IACV Plug for your V3-4 Subaru?

Pigtail Wire Color Options

All Black Wires
We will pigtail each connector slot with a generic black wire. The wire gauge will be adjusted for the application. For example, a radiator fan plug will have larger gauge wires than a throttle position sensor connector, but both will come with black wires.

Color Coded Pigtails Matched to Your Vehicle – No more guessing!
If you purchase a pigtail and select the “Vehicle Matched” option, we will use iWire’s expertise with Subaru electrical systems to wire the pigtail to your vehicle’s specifications, including wire color and gauge. This makes things easier if the connector has broken off or melted.
Note for Color-Matched Pigtails: Please enter your information in the box under the header “For Pigtails: Car Model and Year” so we know which vehicle the connector is intended for.

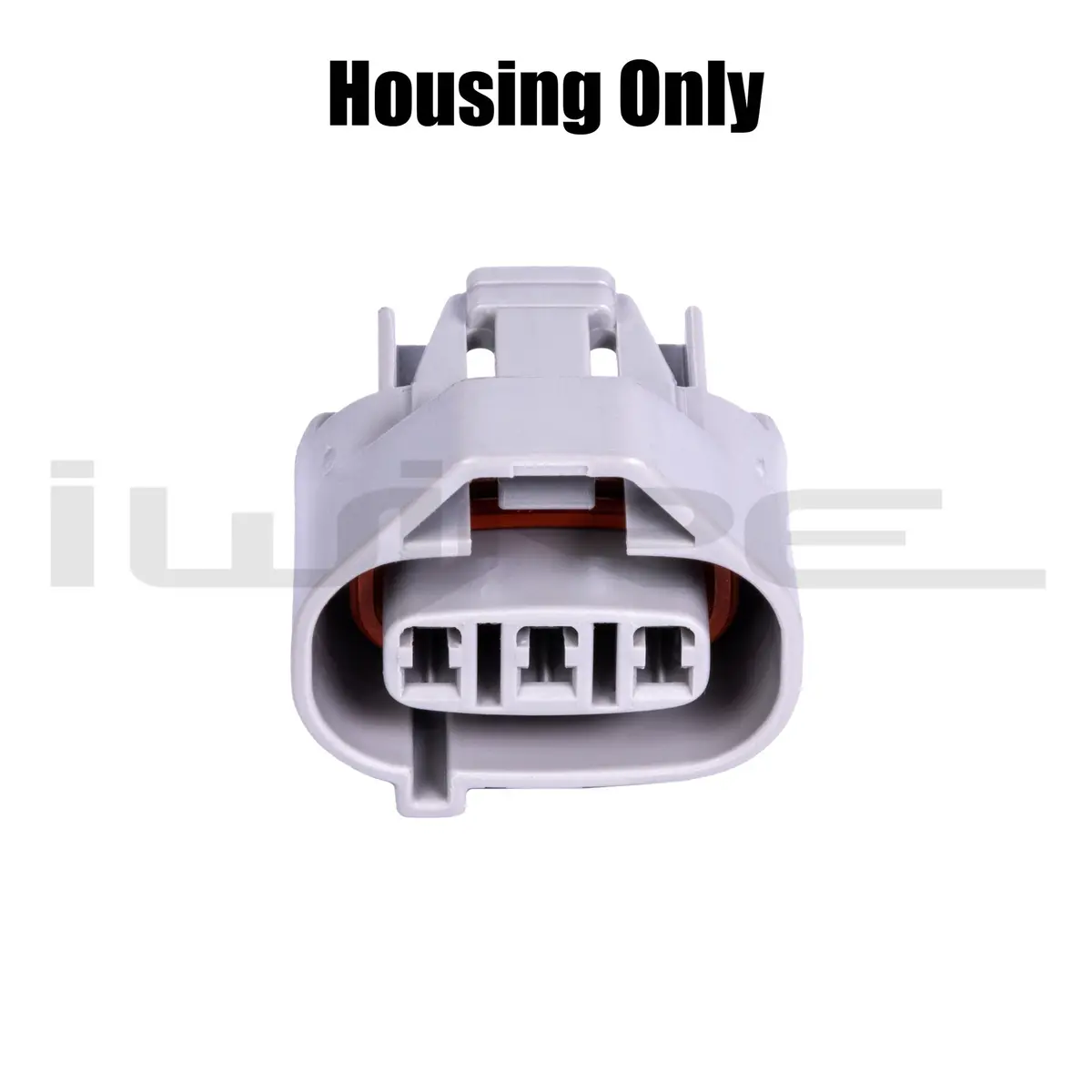

Housing Only = Connector only and lock (if applicable).

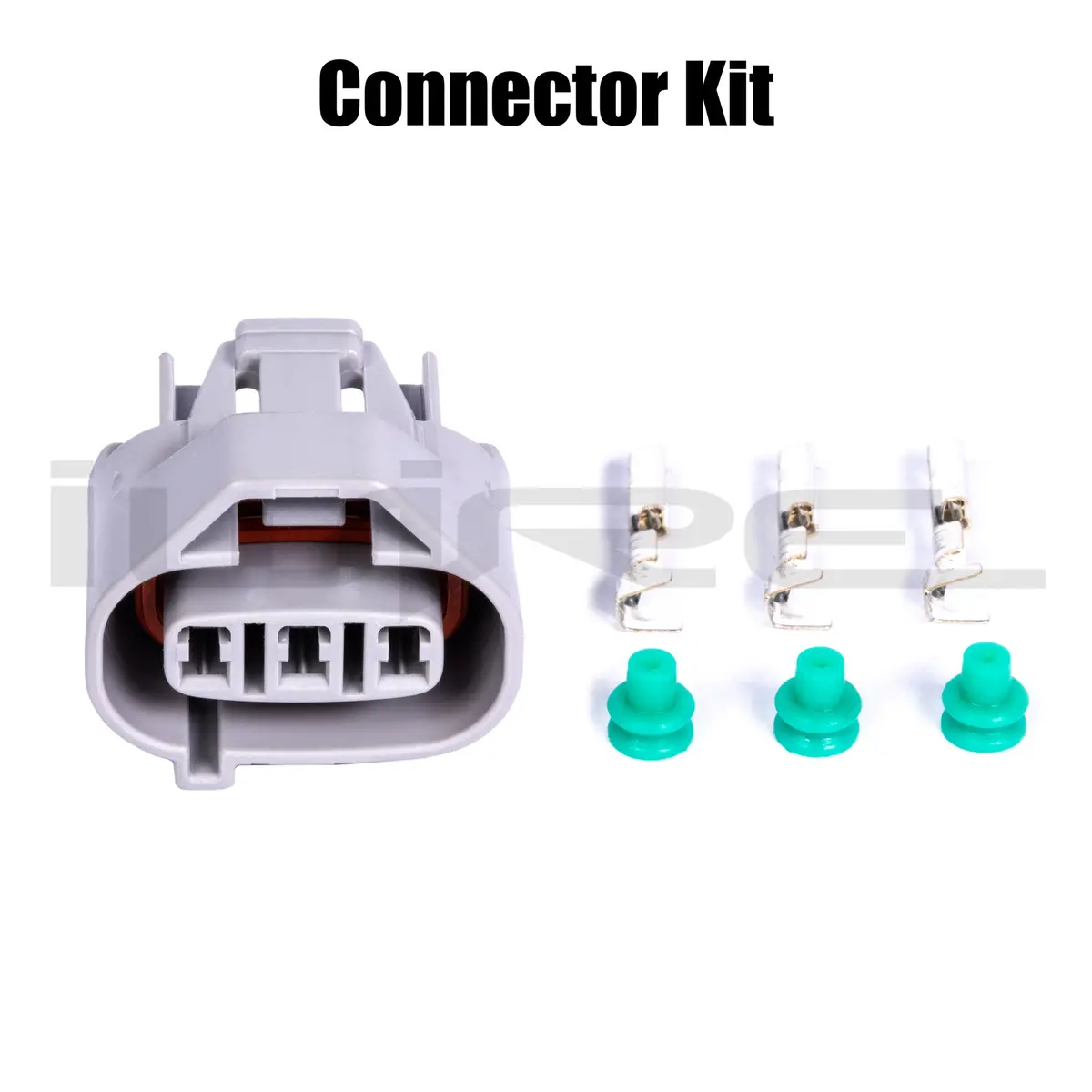

Connector Kit = Connector with loose terminals and seals. Kits come with 1 extra terminal and seal.

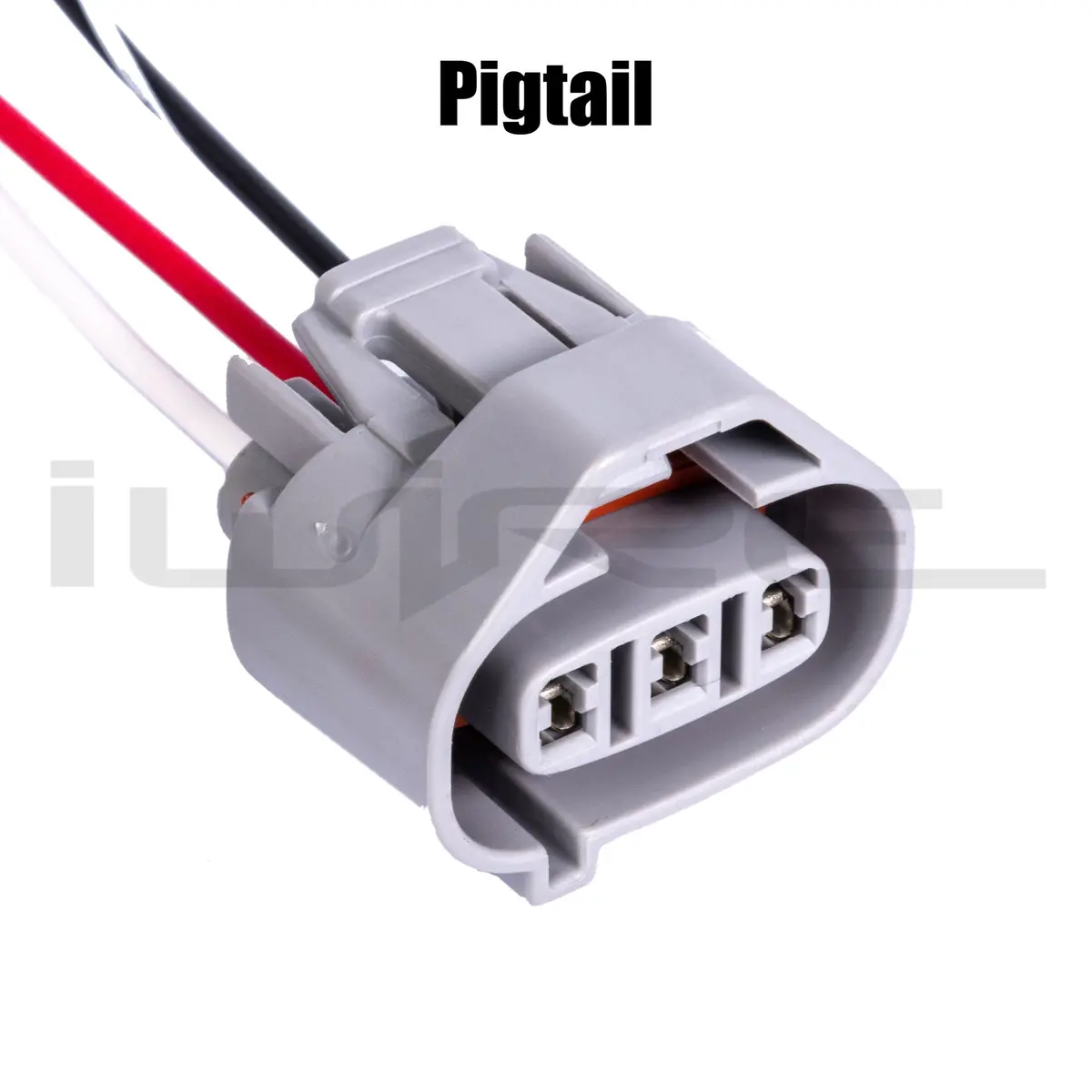

Pigtail = Prewired connector, includes 12 inches of wire per terminal.

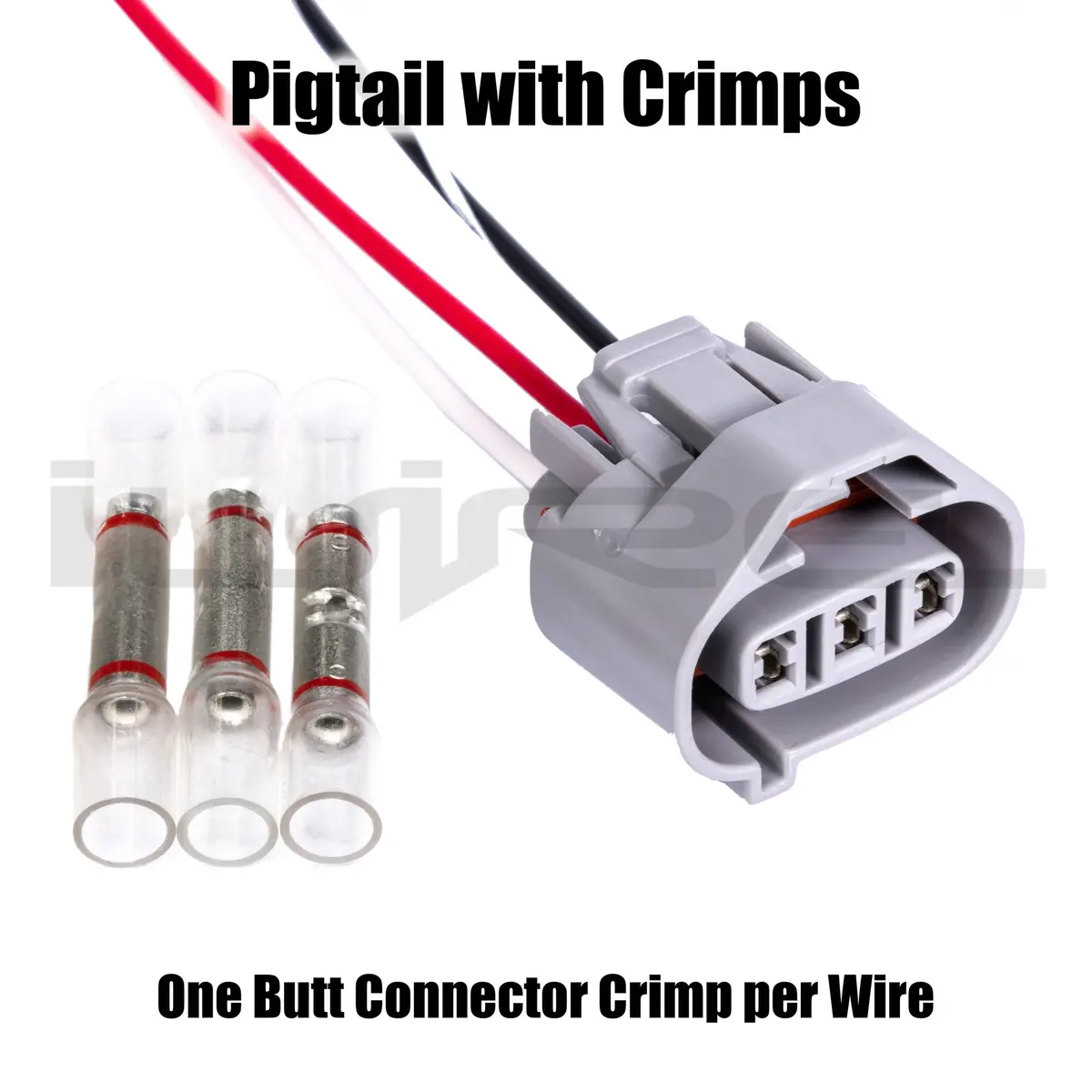

Pigtail with Crimps = Our pigtail option with one butt connector (crimp) per wire for easy install, includes 12 inches of wire per terminal.
