OEM F-150 Raptor Fog Connector to 4-Pole DT + Backlight Port Adapter – Diode Dynamics Conversion Kit

Description

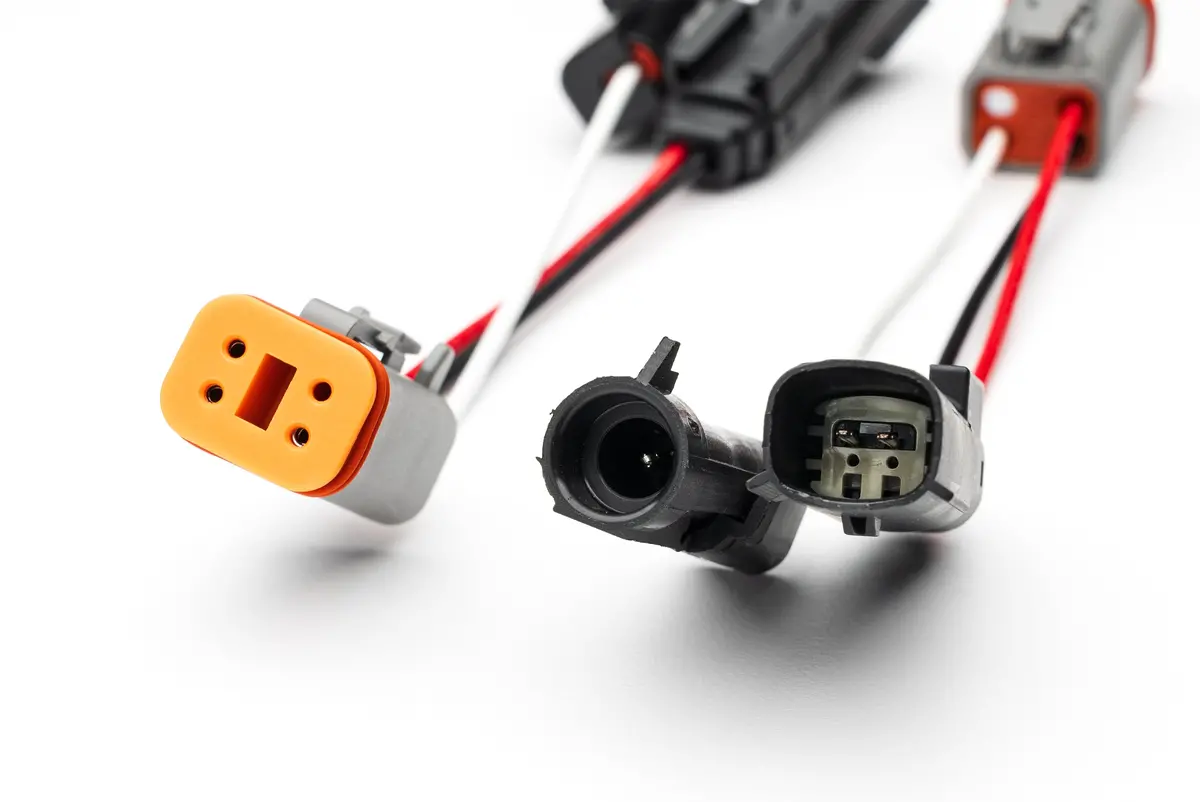

4 Pole DT Connector Adaptor to Factory FOG connector (21+ Raptor) With Backlight Port

MAIN APPLICATION/DESCRIPTION-

Connects to the factory fog connection in the Gen 3 Raptor. Plugs directly into an aftermarket light that has 3 wires. Such Diode Dynamics with Backlight.

Please note.

These are pre-positioned for Diode Dynamics. For other models such as Baja Designs, you may need to just move the pins within the connector to a different position. (This is easy and we have instructions if you need them)

As for the Backlight Port function. The 2 wire adapter will connect to the factory fog connector for full on off of the main light.

Then, you can add a backlight Y Harness to connect to 4 lights/connectors that will run a single connection up to the switch wire area to power the backlights. You can either connect this harness to a single switch, or to our optional Parking/Marker adapter.

Click HERE for the Backlight Y Harness

Click HERE for the Parking/Marker Adapter

Component of the SPV Harness System-

PATENTED – US 11,699,537 B2
