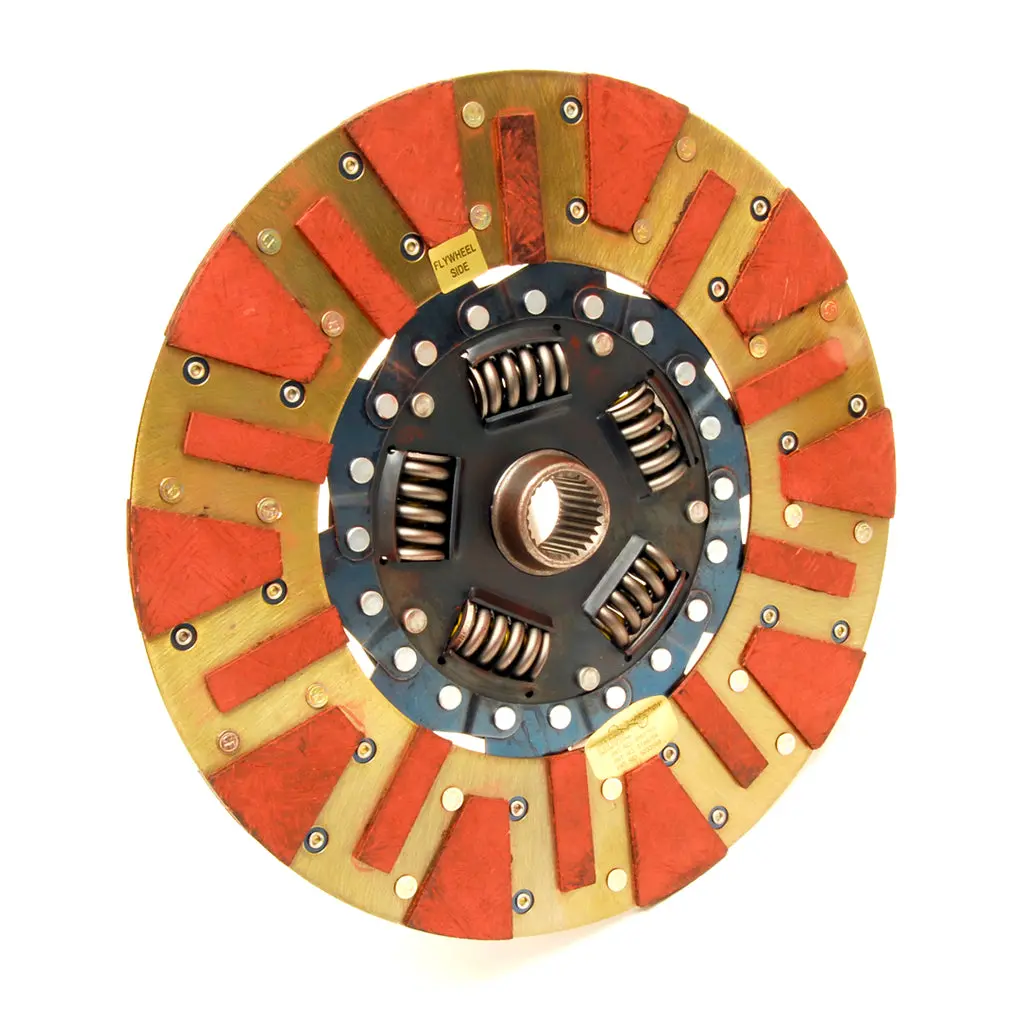

Pn: Df382612 – Dual Friction Clutch Friction Disc

Description

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

• 12″ Diameter;

Attributes:

• GTIN: 00788442027594
• Brand Name: Centerforce
• Clutch Disc Diameter: 12
• Clutch Disc Diameter: 304.8
• Disc Material1: Organic/Carbon Composite
• Disc Type Sprung Solid2: Sprung
• Disc Type4: Full face/Segmented face
• Input Shaft Diameter0: 1-1/8
• Input Spline Quantity1: 26
• Inside Diameter of Friction Surface7: 6.750
• Inside Diameter of Friction Surface8: 171.5
• Material3: Full Face and Segmented Organic Friction
• Out of Package Weight: 5.27

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 5.82 lb
