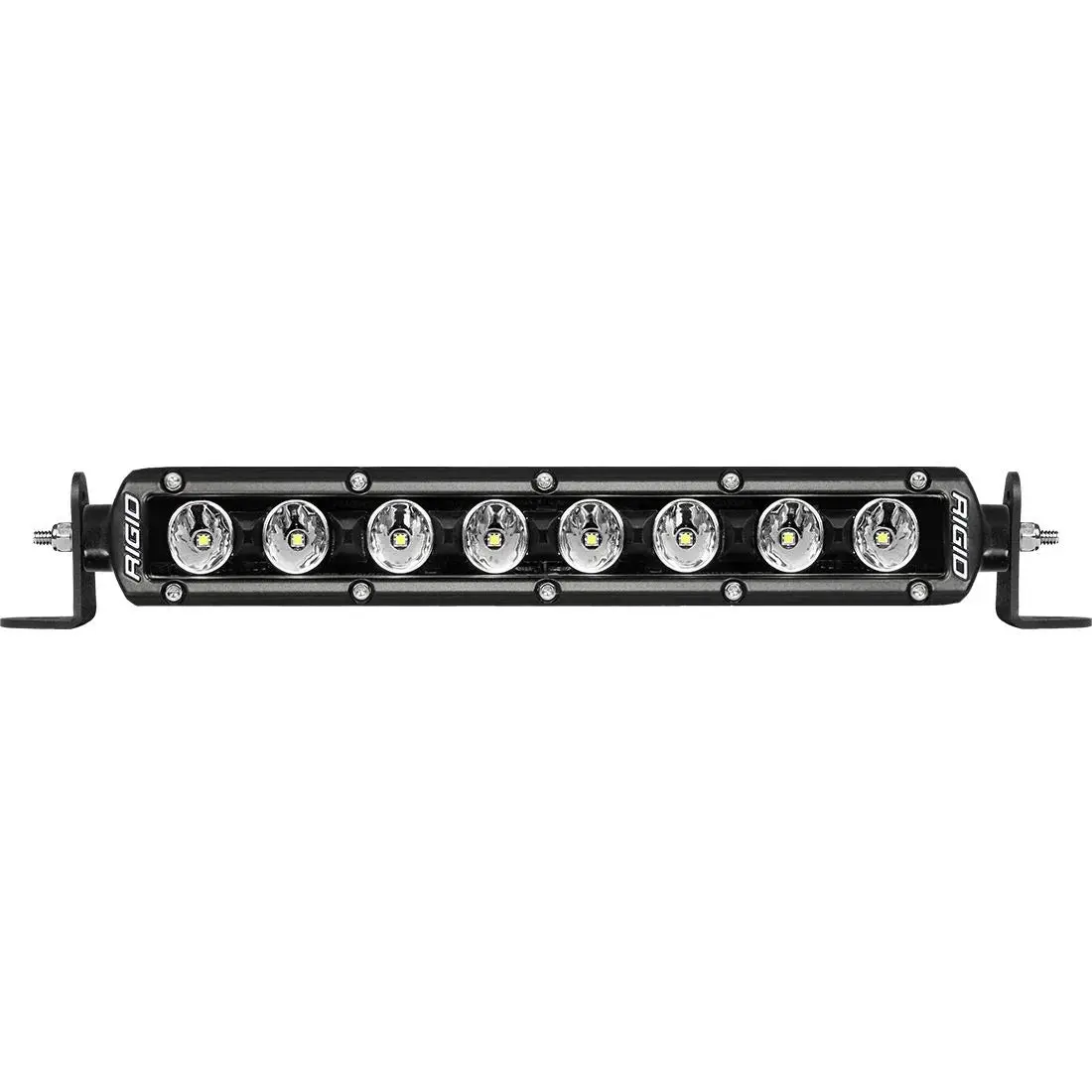

RADIANCE PLUS SR-SERIES

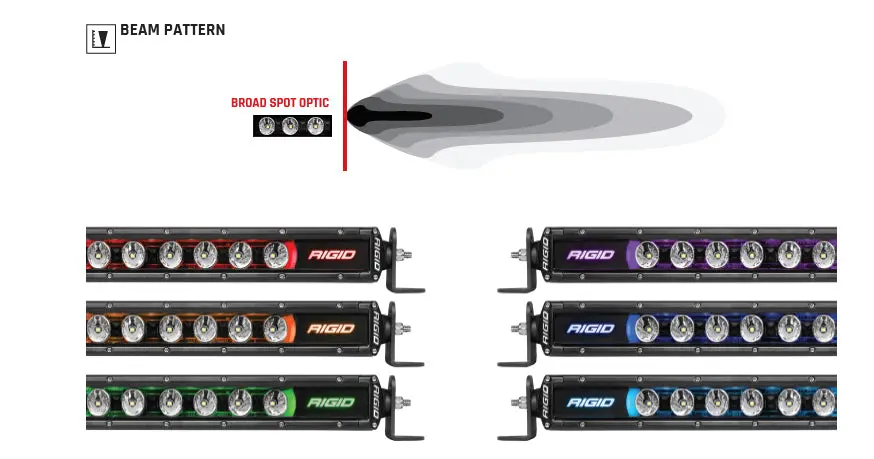

The versatility of the RIGID Radiance lighting family just got even better with the introduction of the Radiance Plus SR-Series.RIGID’s RGB LEDs provide the user with the ability to toggle between eight available back light options with the flip of a switch: Red, Green, Blue, Light Blue, Purple, Amber, White or Rotating.
- Same Construction As RIGID’s SR-Series
- Fits All SR-Series Light Covers And Mounts
- Black Exposed Printed Circuit Board

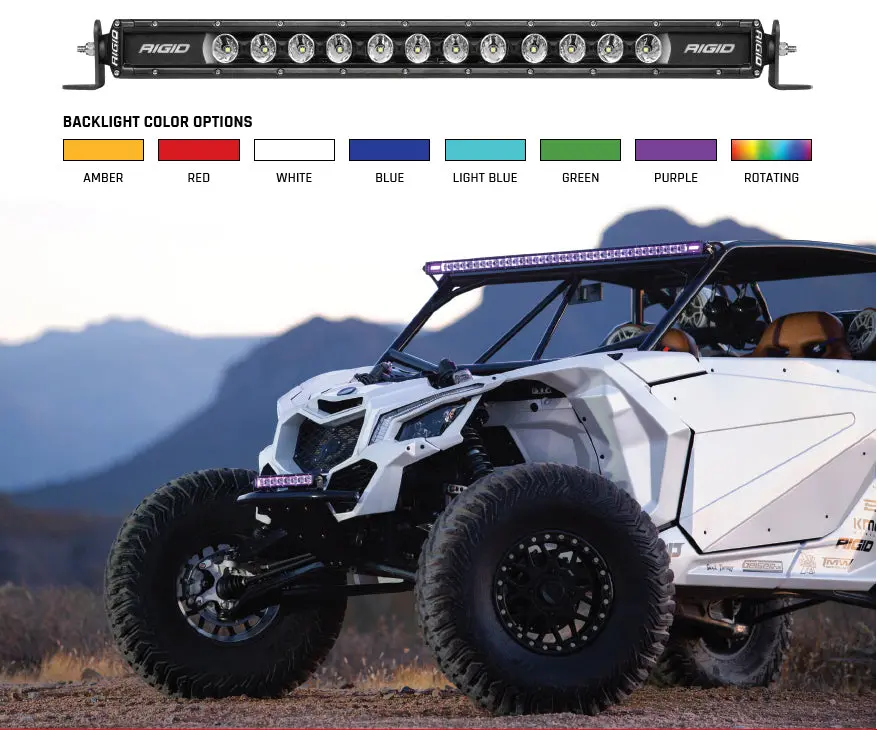

- 8 Back Lighting Options: Red, Green, Blue, Light Blue, Purple, Amber, White Or Rotating
- 10 Year Warranty
- 9-15 V DC
- Harness And Switch Sold Separately, Part Number 40200
- Back Lighting Independently Controlled Using Switch Logic
- Black Powder Coat Finish
- Pressure Equalizing Vent
- IP68 Compliant – Dust/Water Ingress
- High Grade Aluminum Alloy Housing And Heat Sink
- Over/Under Voltage Protection
- High Impact Polycarbonate Lens
- Mounting Brackets Included
- RFI/EMI Protection
- RoHS Compliant
- Off Road Use Only
- Less than 2″ Tall
- Blacked-Out Circuit Board
- High-Grade Aluminum Alloy Heatsink
- IP68 Compliant -Dust / Water Ingress
- 50,000+ Hour Lifespan
- 9-36 V DC
- Patented Technology
- Integrated Thermal Management System

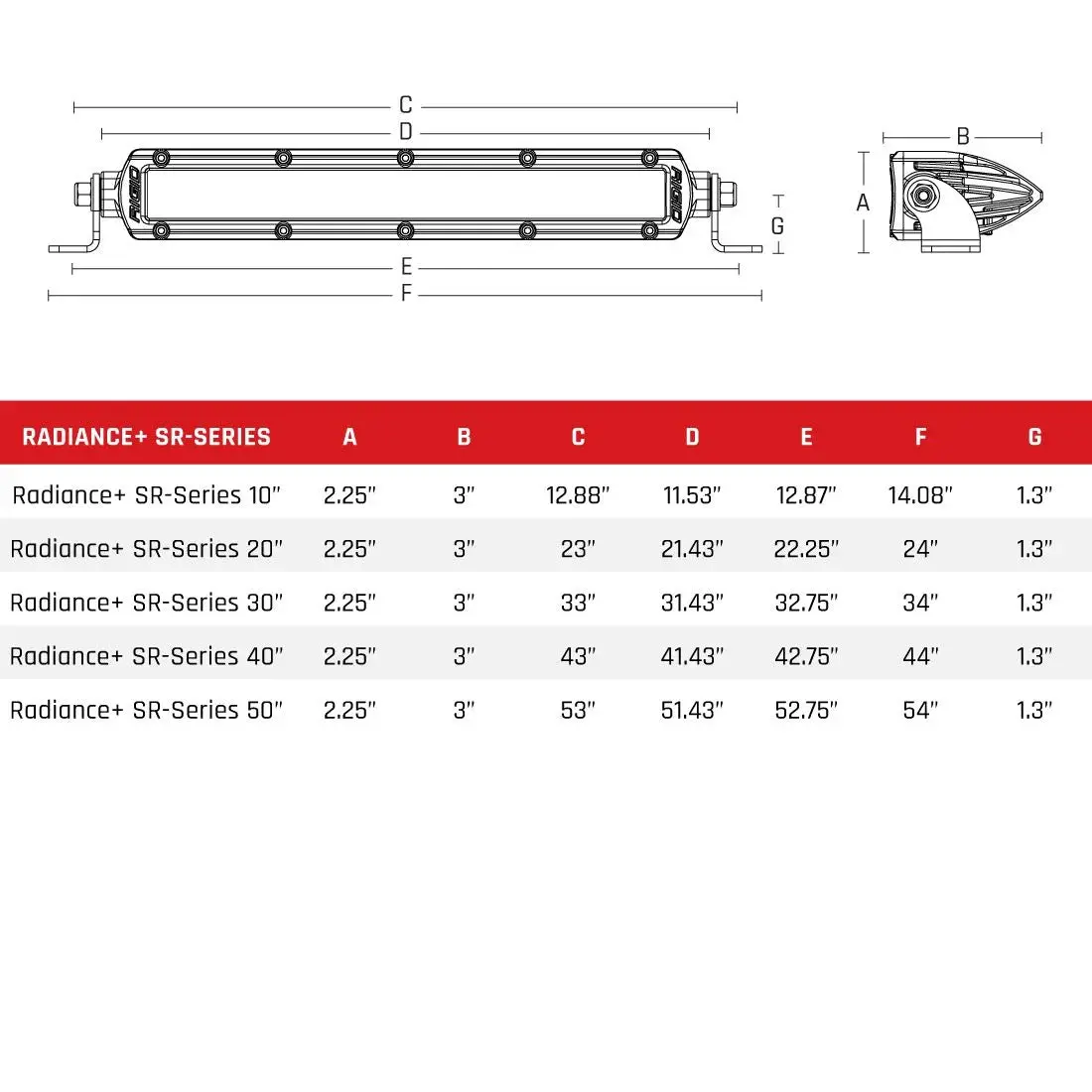

SPECIFICATIONS
| Size | Part No. | Wt (Lbs) | Watts | Amp Draw | Voltage Max | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 10″ | 210603 | 1.90 | 43 | 2.9 | 15 | 4896 | 658.4 | 256.6 | 513.15 | 23 |
| 20″ | 220603 | 4.70 | 81 | 6.2 | 15 | 9792 | 1188.95 | 344.85 | 689.6 | 23.6 |
| 30″ | 230603 | 6.70 | 137 | 10.5 | 15 | 16320 | 1976.42 | 444.55 | 889.15 | 23.7 |
| 50″ | 250603 | 10.80 | 262 | 19.1 | 15 | 29376 | 3404.5 | 565.45 | 1166.95 | 24.8 |
| 40″ | 240603 | 8.80 | 197 | 14.8 | 15 | 22848 | 2800.68 | 529.2 | 1058.45 | 24 |
